t8 to t5 fluorescent lamp adapter 14w 21w 28w 35w 24w 39w 49w 54w 80w t8 to t5 fluorescent lamp adapter manufacturer from China Tongxiang Datang Photoelectricity Technology Co.

t8 to t5 fluorescent lamp adapter 14w 21w 28w 35w 24w 39w 49w 54w 80w

Price:	2.88~6.88 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: t8 to t5 fluorescent lamp a...

Production Capacity: 50000sets/month

Delivery Date: 5days to 15days after recei...

Principle: CFL

IP Rating:: IP20

Color Temperature:: 2700-6500K

Ballast:: Electronic Ballast

Voltage:: AC110-127V or AC220-240V

Guarantee:: 1 year,2 years or 3 years

Means of Transport: Ocean,Land,Air

Packing: 1 set in a polybag and pape...

Shape: Straight

Brand Name: DTD

Tube Dia:: T5/16mm

Light Color:: Red,Blue,Green,Yellow,White

Power:: 14w 21w 28w 35w 24w 39w 49w...

Certificate:: CE,ROHS,CCC

Lifespan:: >10000,20000 or 30000hrs

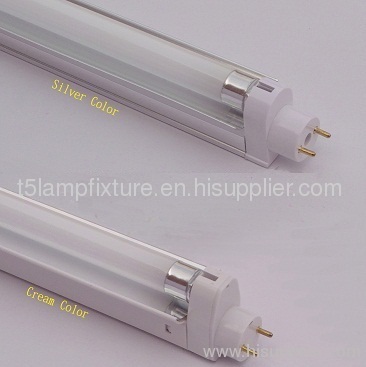

t8 to t5 fluorescent lamp adapter
1)Long Lifetime:over 10000,20000 or 30000hrs under normal working conditions;
2)45% less energy than t8.

t8 to t5 fluorescent lamp adapter performance characteristics:

1) High Power Factor: PF>0.98,reduce the state grid power loss;

2) Long Lifetime: over 10000hours under normal working conditions,we also do 20000hours or 30000hours accordingly;

3) Low Total Harmonic Distortion: Comply with nation standard,reduce the state grid pollution;

4) Wide Voltage AC170V~260V,can be started at 150V;

5) No Flicker: No flash,Use tri-phosphor powder,Reduce your visual fatigue,caring your eyes;

6) Material Fixture: body adopt Aluminium or Plastic with PC cap, beautiful and durable;

7) Application: Factory,School,Hospital,Office,Shopping mall,Supermarket,Household,Display window etc,Only for replacing T8 magnetic fixture;

8) Energy saving and Friendly Environment: 45% less energy consumption than T8 tube,To advocate energy saving;

Energy Saving For Nation,Money Saving For human!

t8 to t5 fluorescent lamp adapter specification,welcome to contact us for 24w 39w 49w 54w 80w information.

(hereinafter referred to as T5)

Voltage	Current	T5 Power	Frequency	T5 Adapter L1	T5 tube L2	T8 power replacement
(V)	(A)	(W)	(Hz)	(MM)	(MM)	(W)
220	0.07	14	50	589.8	549	18/20
220	0.10	21	50	894.6	849	27/30
220	0.13	28	50	1199.4	1149	36/40
220	0.16	35	50	1500.0	1449	58/65

Replace T8 fluorescent lamp with t5 as below:

1) Please switch off and disconnect power before lamp replacement

2) T8 fluorescent tube diameter:25.4mm. Please confirm that your lamp belongs to T8

3) Select the relevant t5 according to the above reference power and make sure that T5 adapter L1 has the same length as T8 tube.

4) Take the T8 fluorscent tube and starter from T8 fixture; Put T5 into T8 fixture just the same way as installing T8 tube

Please let me demonstrate how to save the energy for you:

Type	Voltage (V)	Current (A)	Power (W)	Power Factor (%)	Luminous Efficiency (LM/W)	Color Rendering Index	10 hours per day*300days
T5 28W	220	0.11	24	98%	88	≥82	72kw.h(saving 60kw.h)
T8 36W	220	0.43	44	46%	62	≤65	132kw.h
Example: The company has 1000 peices of T8, They work 3000 hours per year,T5 can save 120000kw for two years( 2year×1000pcs×60kw.h=120000kw.h)

Please try earlier due to its energy saving and environmental protection

Our company also can produce T5 integrated fixtures which can be installed directly without T8 fixtures.

The factory has the certificates of CE,ROHS,CCC and promises that we will exchange the bad quality goods which can't run one whole year under the normal working conditions. We can also promise two or three years
